| Category |
Product Name |
Specification |
Quantity |
| Plate |

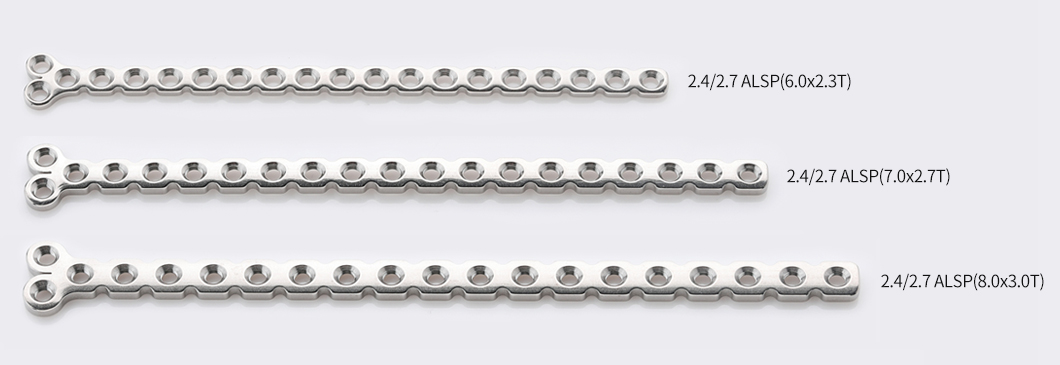

2.4/2.7 ALSP (6.0×2.3T) |
20H, T type, 6.0(W)x2.3(T), Available in Cortical & Locking Screw & Locking Screw, SUS316 LVM, Ti-Gr5 ELI |
1 |
| 2.4/2.7 ALSP (7.0×2.7T) |
20H, T type, 7.0(W)x2.7(T), Available in Cortical & Locking Screw & Locking Screw, SUS316 LVM, Ti-Gr5 ELI |
| 2.4/2.7 ALSP (8.0×3.0T) |
20H, T type, 8.0(W)x3.0(T), Available in Cortical & Locking Screw & Locking Screw, SUS316 LVM, Ti-Gr5 ELI |
| Screw & Plug |
2.4 Cortical Screw |
Ø 2.4, L 8/10/12/14/16/18/20/22/24/26/28/30/32/34/36, |
15 Types x 10 |
| 2.4 Locking Screw |
Ø 2.4, L 8/10/12/14/16/18/20/22/24/26/28/30/32/34/36, |
| 2.7 Cortical Screw |
Ø 2.7, L 8/10/12/14/16/18/20/22/24/26/28/30/32/34/36, |
| 2.7 Locking Screw |
Ø 2.7, L 8/10/12/14/16/18/20/22/24/26/28/30/32/34/36, |
| 2.7 Locking Plug-H |
Ø 1.6 Hole, Ti-Gr5 ELI |
5 |
| 2.7 Locking Plug-NH |
No Hole, Ti-Gr5 ELI |
5 |
| 2.4/2.7 TPLO(6.0×2.3),(7.0×2.7),(8.0×3.0)-L,R |
6.0(W)x2.3(T), 7.0(W)x2.7(T), 8.0(W)x3.0(T), Ti-Gr5 ELI |
6 Types x 1 |
| 2.4/2.7 CBLO(6.0×2.3),(7.0×2.7),(8.0×3.0)-L,R |
6.0(W)x2.3(T), 7.0(W)x2.7(T), 8.0(W)x3.0(T), Ti-Gr5 ELI |
6 Types x 1 |
| 2.4/2.7 DFO(6.0×2.3),(7.0×2.7),(8.0×3)-L,R |
6.0(W)x2.3(T), 7.0(W)x2.7(T), 8.0(W)x3.0(T), Ti-Gr5 ELI |
6 Types x 1 |
| Instruments |
2.4/2.7 Bender |
Stick Type, Vertical / Twist Bending |
1set |
| 2.4 Locking Screw Drill Guide |
For 1.8 Drill Bit |
1 |
| 2.7 Locking Screw Drill Guide |
For 2.0 Drill Bit |
| Drill Stopper |
Wrench connecting type |
| 2.4/2.7 Cortical Screw Guide |
1.8/2.0 Drill Bit exclusive, Built-in type |
| Screwdriver [T8] |
Shaft Built-in type, T8 |
| 2.4/2.7 Depth Gauge |
Pin replacement type |
| ∅1.8 Drill Bit |
Quick Coupling |
2 |
| ∅2.0 Drill Bit |
Quick Coupling |
| Plate Cutter |
Cutting range : T2.0~3.0 |
1set |
| Bending Plier |
Vertical / Horizontal Bending |
1 |
| 2.4/2.7 ALPS Case |
Aluminium Alloy, Silicon |
1set |
